The KECO Model 205 PermaStream H2S in Liquids Process Analyzer offers an accurate quantification of hydrogen sulfide (H2S) in sample streams of crude oil as part of environmental compliance, safety, and quality control practices.

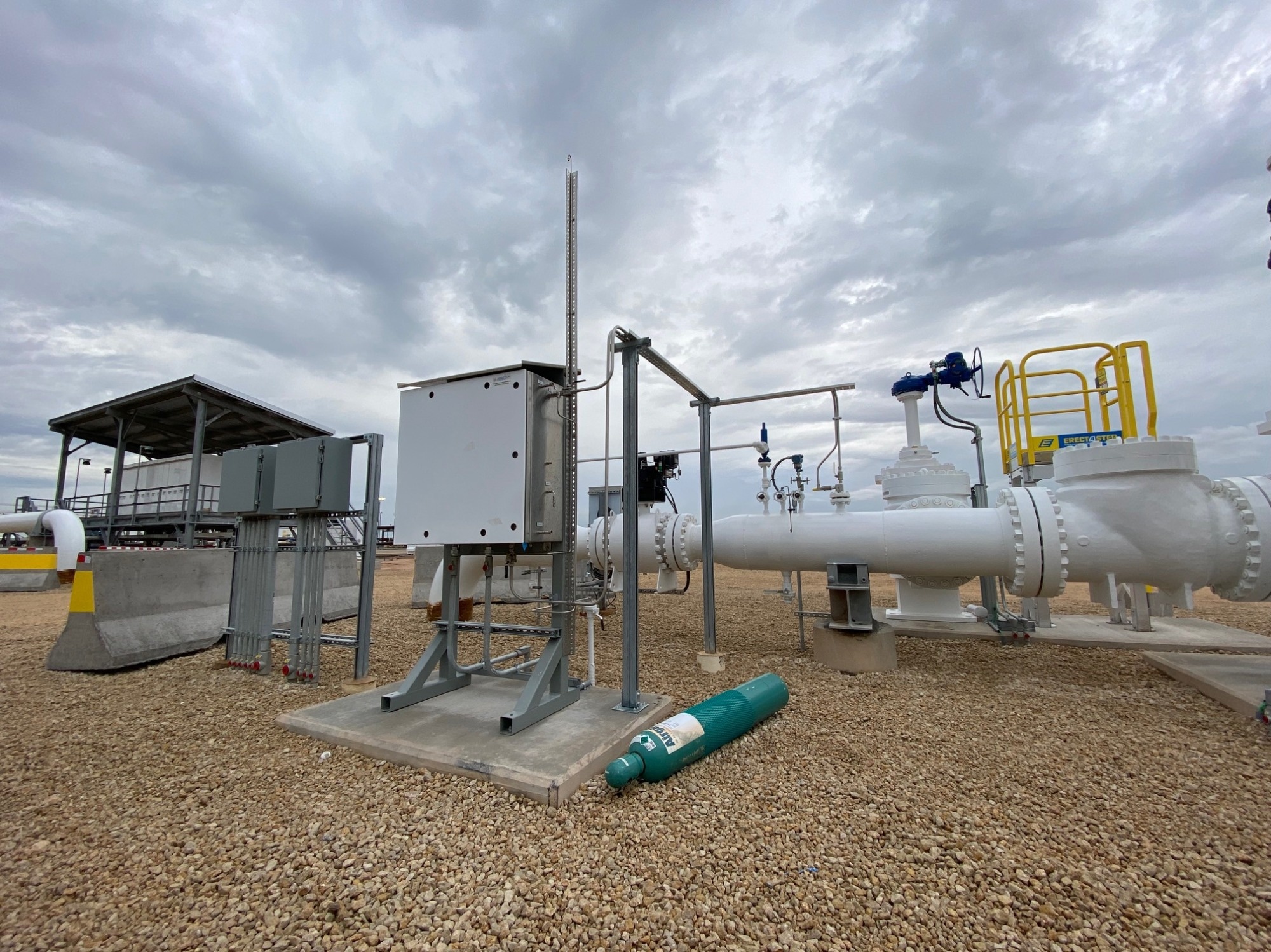

The KECO 205-Permastream H2S in Liquids Process Analyzer is a very scalable analyzer that helps customers monitor low- and high-volume lines. Here, it is show in a midstream application monitoring a high flow custody transfer meter run. Image Credit: KECO
The inline analyzer measures H2S in light/medium/heavy crude oil, dirty/clean water, diesel, fuel oil and drilling fluid in real time. By providing accurate and continuous monitoring of H2S levels in liquid streams, the analyzer helps companies demonstrate compliance with air permits promoting the reduction of environmental impacts.
Naturally found in crude oil, H2S can pose a threat when inhaled due to its toxicity. Its corrosive properties also can cause damage to storage tanks and pipelines used to transport crude oil. In addition, crude oil with lower levels of H2S is more valuable as it can be more readily processed into petroleum products.
Accurate quantification of H2S is necessary for its efficient removal from crude oil. Due to its opacity and complex structure, it cannot be visually measured. The most effective measurement method requires stripping H2S from the liquid into gas for analysis by an analyzer or a sensor. The Model 205 PermaStream H2S in Liquids Process Analyzer efficiently and reliably separates H2S from the liquid sample for measurement in the gas phase without false positives as it only detects H2S.
A simple device, the 205 PermaStream continuously provides an ultra-clean and dry sample to the H2S sensor for real-time and accurate measurement. Dependable in operation, the analyzer requires no field calibration, sample conditioning, filters nor pumps. Incorporating KECO Membrane Technology, the ultra-low-maintenance device addresses the shortfalls of headspace stripping columns traditionally used for this purpose that were problematic because of oil clumping and high maintenance associated with replacing a multitude of parts that break down over time.
The 205 PermaStream measures the presence of H2S in ppm or even precent ranges in complex liquid streams. Set in line at process and flow, the H2S liquid process analyzer supports continuous online monitoring of H2S.
