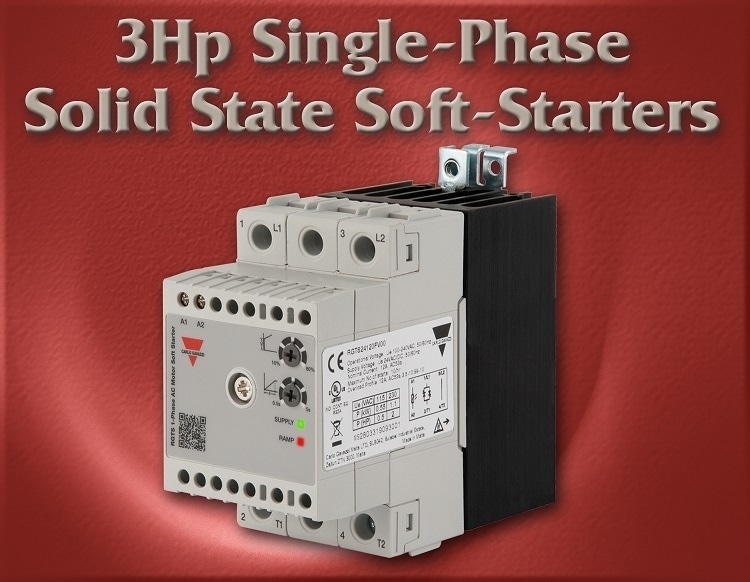

Single-Phase Solid State Soft-Starters - Up to 3Hp -

Carlo Gavazzi is pleased to announce the launch of our new RGTS Series single-phase motor soft-starters. They can control 120 or 240VAC induction motors up to 25A / 3Hp.

The RGTS Series is a fully solid state solution. Wire bonding technology reduces the thermal and mechanical stresses of the output chips resulting in a longer lifetime compared to other assembled technologies or electro-mechanical solutions. The RGTS is a very simple soft starter requiring just two user adjustments. The motor ramp-up time, and initial torque, can be independently adjusted via the built-in potentiometers. The green LED indicates the supply voltage presence. The ramp-up and full-voltage indication are provided through an orange LED. The RGTS does not require a dedicated control signal. Hence less wiring is involved. Despite its simplicity, the RGTS solution that can help to reduce motor starting current by 40% compared to a direct on-line start.

The RGTS Series features include:

  • 1-phase soft-starter
  • All solid-state device, no bypass relays
  • Universal 120-240VAC line voltage rating
  • Controlled by line voltage
  • Option for VAC or VDC supply voltage
  • Maximum current rating 12, 16 or 25AAC
  • Up to 10 starts per hour at rated current
  • Voltage ramp-up control algorithm
  • Status indicating LEDs
  • CE approved, cULus listed

The RGTS is an ideal solution for simple applications such as centrifugal pumps, compressors, and fans that do not require a start capacitor.

The RGTS Series is available from Carlo Gavazzi’s network of sales offices and distributors in the Americas, or at www.GavazziOnline.com.
