Toshiba Launches Lens Reduction Type 1500-Pixel Monochrome CCD Linear Image Sensors for Industrial Equipment

Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched two lens reduction type 1,500-pixel monochrome CCD linear image sensors for industrial equipment: “TCD1105GFG,” with a built-in electronic shutter function, and “TCD1106GFG.” Sample shipment will start from July 2020.

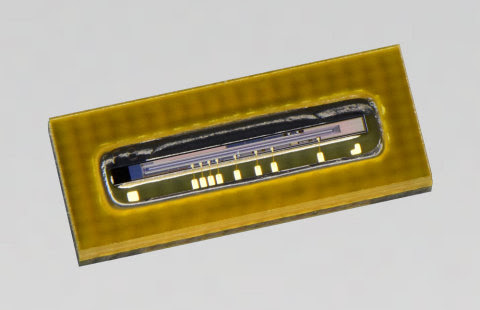

Toshiba: Lens reduction type 1500-pixel monochrome CCD linear image sensors "TCD1105GFG" and "TCD1106GFG" for industrial equipment (Photo: Business Wire)

The new sensors support two key industry requirements: faster operation of equipment that incorporate sensors, including inspection equipment with monochrome CCD linear image sensors; and lower power consumption.

The new sensors can be used at a maximum data rate of 25 MHz, and both incorporate a timing generator circuit and CCD driver, realizing high-speed operation with few external circuits. A built-in sample and hold circuit lengthens the video output signal period, contributing to easier design for high-speed signal processing.

In addition to improved performance, lower power consumption than Toshiba’s current high-speed products is achieved with a single 3.3 V power drive.

Features

  • 1,500 pixels, 25 MHz (max) data rate, monochrome CCD linear image sensors
  • Built-in timing generator circuit reduces external driving circuits.
  • Built-in sample and hold circuit extends video output signal period.
    (signal polarity: positive)
  • Built-in electronic shutter function: TCD1105GFG only
  • Single 3.3V power drive

Applications

Automated optical inspection equipment, sensing equipment, barcode readers, etc.

Main Specifications

. .
Part number TCD1105GFG / TCD1106GFG
Pixel size 5.25 µm by 50 µm (5.25 µm pitch)
Effective pixel number 1500 pixels by 1 line
Sensitivity(A light source + CM500S) TCD1105GFG: 125V/(lx s)
TCD1106GFG: 600V/(lx s)
Data rate 25 MHz max
Power supply voltage 3.3V (typ.)
Others / Additional features Timing generator circuit
Sample and hold circuit
Electronic shutter function (TCD1105GFG only)



For more information on the new products, please visit:

TCD1105GFG - https://toshiba.semicon-storage.com/info/lookup.jsp?pid=TCD1105GFG

TCD1106GFG - https://toshiba.semicon-storage.com/info/lookup.jsp?pid=TCD1106GFG
