Customer-Configurable Differential Pressure Transmitter From tecsis LP

tecsis LP offers the Model SP007: a completely customer-configurable differential pressure transmitter. Our manufacturing process provides quick turnaround, allowing customers to select the accuracy, output, pressure ports, and electrical connector to get a customized sensor without delay.

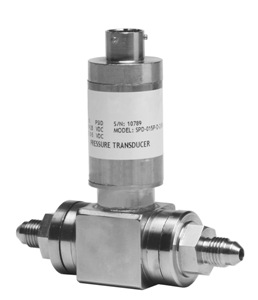

SP007 differential pressure transmitter

The bi-directional wet/wet design utilizes proven silicon technology for reliable data in tank level measurement, monitoring flow rate in heat exchangers or filters, and in a variety of test stand applications. The SP007 is built to perform in the most demanding conditions with welded stainless steel construction and a 3x safe overload rating.

This versatile unit is available in ranges from 0-1 to 0-500 psid with standard accuracy of 0.25%, or optional high accuracy of 0.1%. Amplified output of 0-5Vdc, 0-10Vdc or 4-20mA is offered and there are 5 electrical connections to choose from. With 6 different pressure ports available, the SP007 will easily integrate into most any system. Operating temperature is -40° to 240°F, compensated from 40° to 140°F.

Available now from tecsis LP, priced from $827. Contact tecsis at 614-430-0683 or click. tecsis LP, 771-F Dearborn Park Lane, Worthington, Ohio 43085 USA. Email: [email protected] Web: www.tecsis.us Made in USA. ISO 9001:2008 Certified.
