Miniature Pressure Transducer by Tecsis LP Designed to have a Flush Diaphragm

Model XPMF03 miniature pressure transducer manufactured by tecsis LP has a flush diaphragm design which creates zero dead volume at the pressure connection.

This feature makes it ideal for operations which involve spraying or application of sealants, paints, coatings or other congealable media which can clog conventional pressure ports. The diaphragm measures as small as .310” in diameter and installs into a 3/8”-24 UNF or a 7/16-20 UNF threaded port with an o-ring seal. This modified standard product also features a miniature threaded electrical connector for ease of integration into new or existing applications.

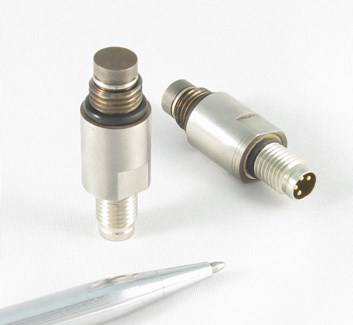

XPMF03 Flush Diaphragm Miniature Pressure Transducer.

XPMF03 delivers a combined linearity and hysteresis spec of 1.0% FSO with an output of 2mV/V.  The standard sensor is manufactured from 17-4 PH stainless steel, with other materials available for improved performance in harsh or highly corrosive environments.

This versatile unit is manufactured as a single piece, making it sturdy enough to handle pressures of 0-20,000 psi yet sensitive enough to measure ranges from 0-150 psi. XPMF03 features a wide operating temperature range from  -65° to +300°F. Robust construction provides safe overload protection of 150% full scale. Available now from tecsis LP, priced from $477 with quantity discounts available.

Contact tecsis LP (formerly Delta Metrics) at 614-430-0683 or click for details. tecsis LP, 771-F Dearborn Park Lane, Worthington, Ohio 43085 USA. Email: [email protected] Web: www.tecsis.us. Made in USA. tecsis LP is ISO 9001:2008 certified.
