Bestech Debuts SI314 Network Interface for USB Differential Pressure Transducers

Bestech Australia introduces the model SI314 -a network interface can connect upto four P61 USB Differential Pressure Transducers to a smart phone or network web browser that allows a complete digital operation. The SI314 Ethernet / Wi-Fi (optional) interface connects to a PC or smartphone and displays current pressure readings and transducer status on any web browser ormobile phone App.

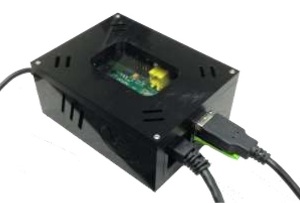

Network interface SI314

Data information such as sensor temperature, date of calibration, model and serial numbers are also collected and displayed via Ethernet or wireless connection. The SI314 network interface allows user to monitor P61 USB pressure transducer anytime, anywhere around the world.

The Model SI314 from Bestech Australia is ideal for remote pressure reading, data logging, calibration, smart phone accessibility, twitter alarms and updates.Auto-Zero and Auto-Span capabilities are also available via the network and are password protected via browser buttons. Real-time data graphics is viewed on browser via Wi-Fi or Ethernet cable connections, and data logging with time stamp forP61 pressure sensor is configured overthe network (web browser or a smart phone) and readings may be stored once every minute to once per hour whist alarms can be sent by Email or Twitter. Data in the form of a graph can be accessed via an internal network or externally via a browser from anywhere in the world. Data can also be exported and downloaded to the computer in a comma separated file (csv) format.

The P61 is a digital differential pressure transmitter designed for industrial applications and ideal for laboratory pressure, level measurements, hydraulic pressures and flow measurement.

More details on SI314 network interface with USB pressure sensors, please contact Bestech Australia!
