Posted in | Gas Sensors

Preserving Gas Detectors with the DSX™ Docking Station

The DSX™ Docking Station can maintain the gas detectors that are at the core of any robust gas safety regime. The docking station offers three different modes that can cater for a wide range of user needs, with each of the three modes offering an out-of-the-box solution. These are:

DSX Standalone

When working in standalone mode, the DSX™ Docking Station does not need a network configuration or PC. It is ready to be used straight away, and this mode can offer the following key benefits:

  • An easy, intuitive bump testing process and calibration of devices on the dock makes the device extremely simple to use.
  • Automatic record keeping is possible using direct USB data storage. This not only eliminates concerns about storage space, but also reduces risks of losing vital compliance data.
  • Bump and calibration certificates can be printed automatically using a direct connect printer, providing hardcopy printouts for hot work and confined space entry.
  • Automatic device wake-up and battery charging features help improve productivity.
  • The device facilitates auto detection of calibration gas type and expiration date upon cylinder connection.
  • With the use of a DSXi activation key, the DSX Standalone can be converted to a cloud-connected, fully automated device maintenance station. Doing this would mean that there is no need to send anything back for activation - all upgrades can then be performed in the field with ease.

DSXi Cloud-Connected

While working in cloud-connected mode, the DSX™ Docking Station can deliver a reliable, automated record storage, maintenance and fleet management solution that is appropriate for an array of diverse settings. Its key features include:

  • The capability for bump test and calibration schedules to be tracked and performed automatically, allowing devices to be ready for use before the start of a shift.
  • Cloud-based data storage delivers peace of mind, at all times by allowing for automatic file back-up and easy recovery should there be an incident of unforeseen data loss.
  • Users can effortlessly manage fleet, data and software updates from any web-enabled device.
  • Email alerts and warnings deliver information on potential worker exposure and device usage, as well as information on essential device maintenance requirements.
  • The optional auto calibration gas replenishment program provides an effective means of managing calibration gas usage and needs. New cylinders are sent to the user on demand.

DSX-L Local Server

Using the DSX™ Docking Station in local server mode gives users the option of automatically storing data from all connected docking stations behind a secure, corporate firewall. This allows network and data storage restrictions to be managed according to the users’ preferences. Using the DSX™ in this way enables these features:

  • Bump test and calibration schedules can be tracked and performed automatically, ensuring that devices are ready for use at the start of every shift.
  • Automatic device wake-up and battery charging also help to improve efficiency.
  • Company and application specific device settings can be acquired and applied to devices from within the company network.
  • Reporting can be configured to provide the data that users need, when they need it.
  • Calibration gas status indicators can provide warnings notifying workers of the need to order replacement gas before a cylinder becomes empty, thus reducing potential down time.

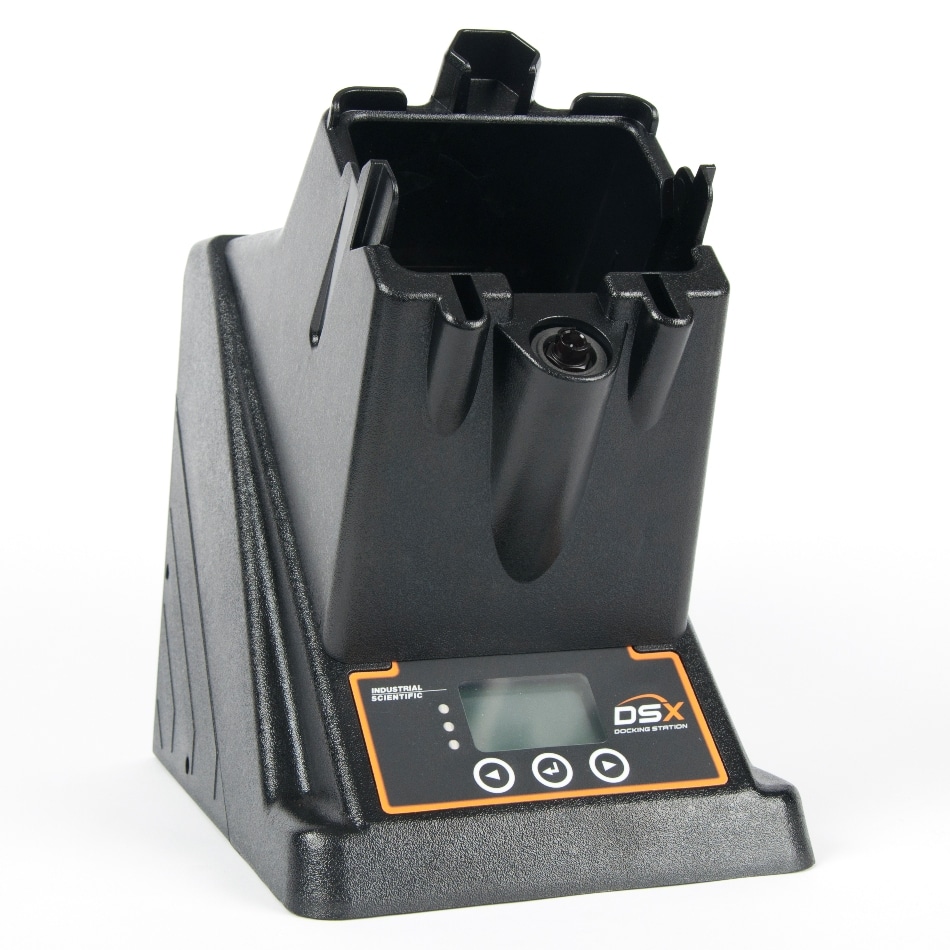

DSX™ Docking Station

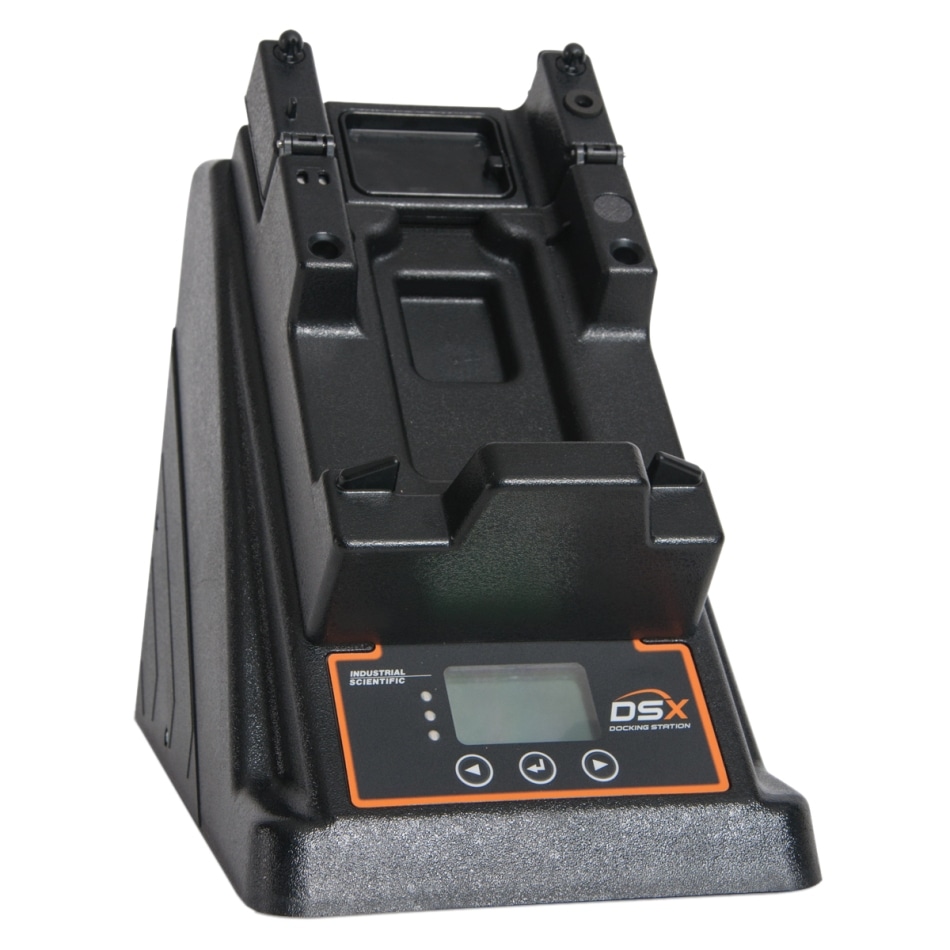

DSX Docking Station for MX6 iBrid

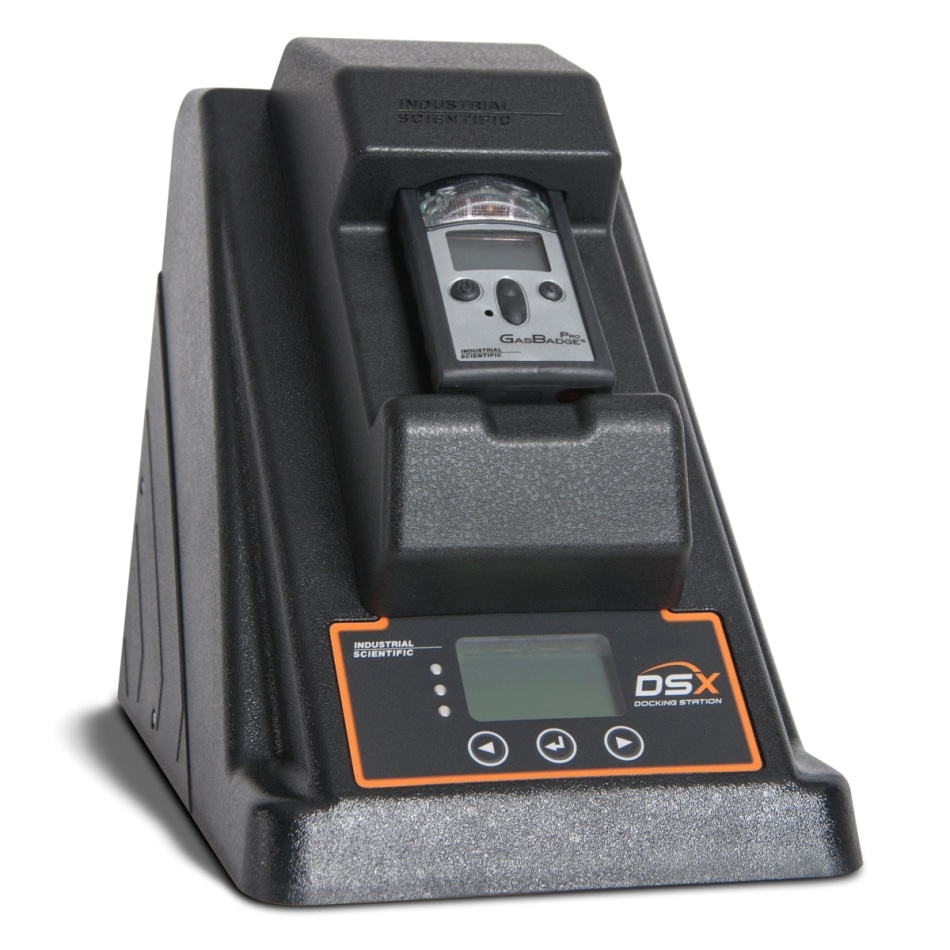

DSX with GasBadge Pro

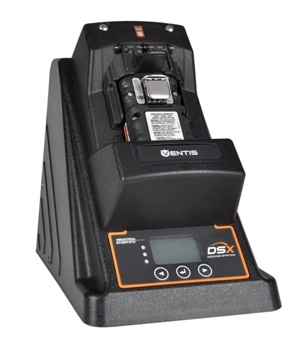

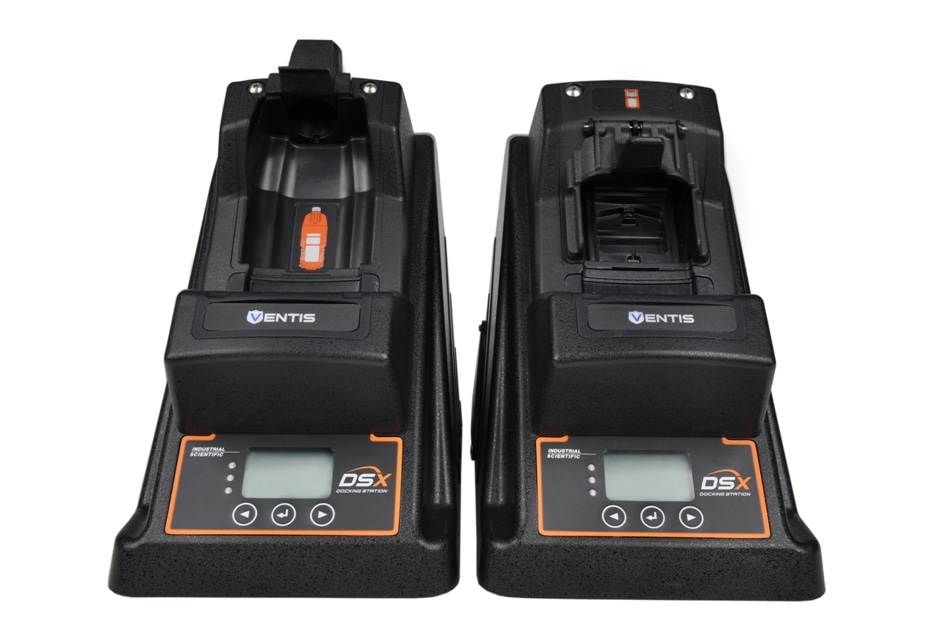

DSX Ventis for pumped and diffusion instruments

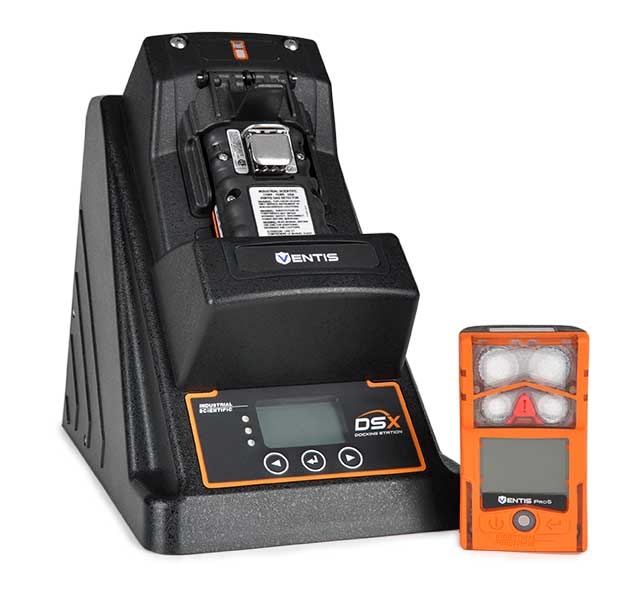

DSX Docking Station with Ventis Pro
DSX Docking Station for SafeCore Module
