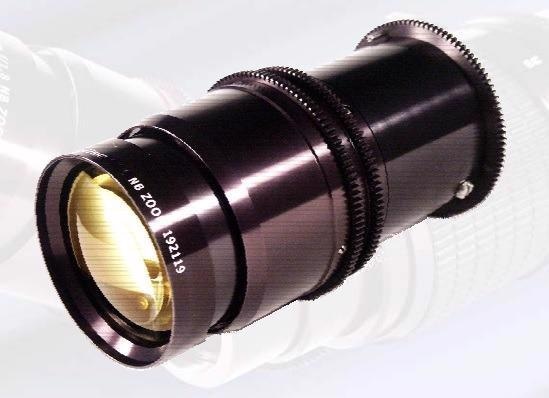

Extended Range Non-Browning Zoom Lens

Based upon a proven design – Resolve Optics new Model 192-001 non-browning 6x zoom lens offers high performance over an extended 24-144mm focal length range making it perfect for remote monitoring tasks in nuclear reprocessing and power plants.

The compact lens’s speciality glass components can withstand long-term exposure to radiation, up to a dose of 100 million RAD and without loss of transmission and minimal colour change. Operating at f/3.6, the Model 192-001 provides good image resolution and minimum geometric distortion from 400 to 750 nm. When focused at infinity, the Model 192-001 will maintain focus throughout the zoom range without the need to refocus.

Available in 1/2-inch and 2/3-inch image formats the C-mounted Model 192-001 can be simply mounted on Newvicon tubes, Chalnicon tubes and CCD devices.

For further information on the Model 192-001 non-browning 6x zoom lens please visit www.resolveoptics.com/192-001-24-144mm-f3-6-61-range-extended-non-browning-zoom-lens-2/ or contact Resolve Optics on +44-1494-777100 / [email protected].
