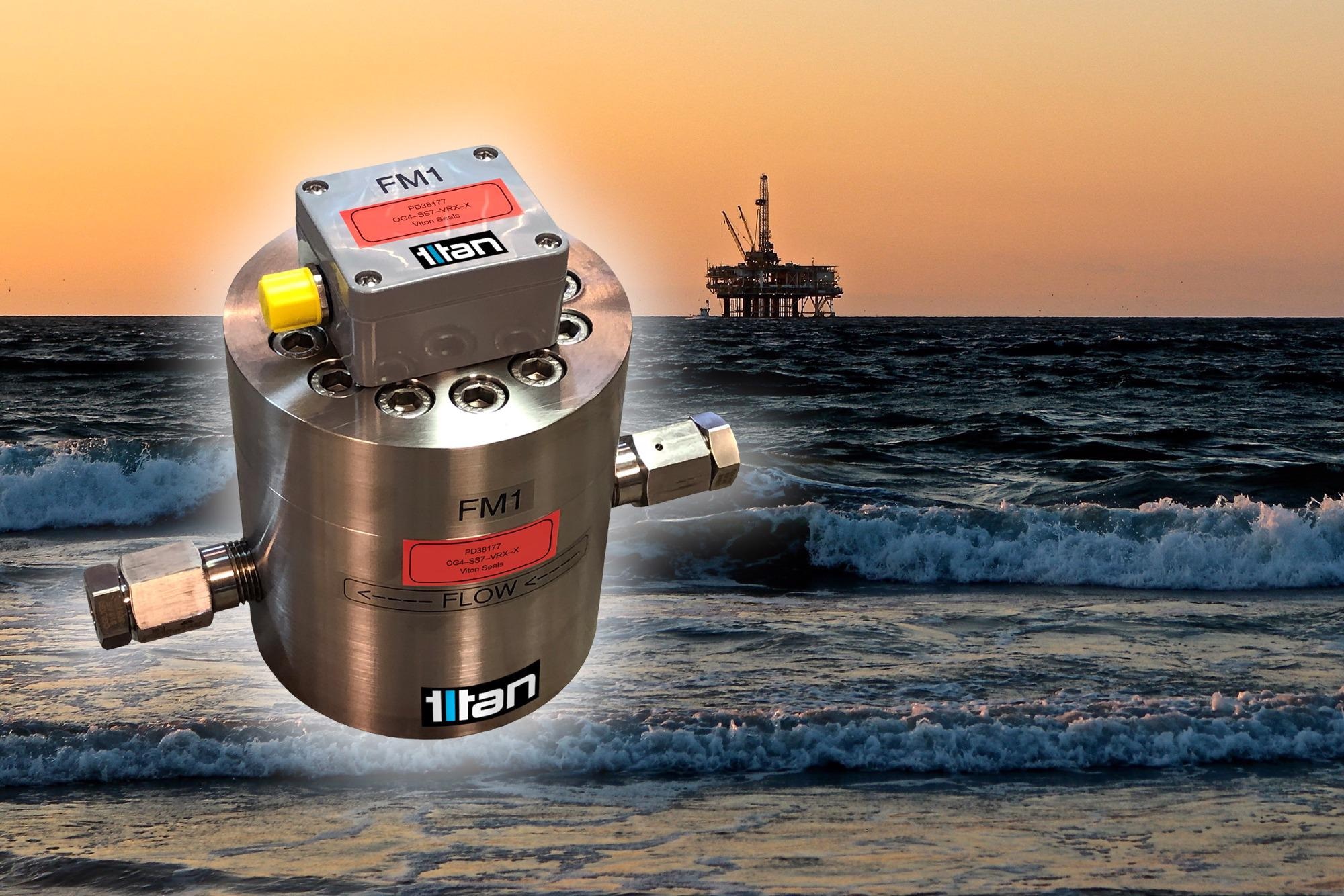

Titan Enterprises reports that its High Pressure Oval Gear (OG4) flowmeters provide an ideal solution for applications, within the oil and gas industry, that require a highly accurate and chemically resistant flow measurement device, such as metering high pressure additive injection.
Benefiting from a compact, rugged design, Titan’s OG4 flowmeters are proven to operate reliably even at high pressures, providing long-term performance with minimal maintenance. Furthermore, Titan’s OG4 flowmeters are able to operate at temperatures up to 150°C and are fully IP67/NEMA 4 compliant. Each OG4 flowmeter comes with a pressure test certificate that verifies the device’s ability to handle pressures up to 700 bar and up to 950 bar for custom-designed models.
With a standard flow range of 0.25 to 50 litre / min on 30cSt oil, OG4 flowmeters are able to regularly achieve outstanding repeatability (0.1%) and accuracy (0.75%).
For oil and gas applications where the presence of strongly acidic or basic chemicals has to be considered, Titan Enterprises is also able to offer a choice of construction materials for the OG4 flowmeter (as well as across its oval gear model range). Totally non-metallic components and a choice of elastomer seals are options for the standard OG4 flowmeter which aid chemical compatibility. A choice of 316 stainless steel or Hastelloy C is available for the high-pressure range.
For further information on the OG4 flowmeter (and Titan’s full range of oval gear flowmeters) please visit www.flowmeters.co.uk/og4-pd-oval-gear-flow-meters-positive-displacement-swept-volume-flow-measurement/ or contact Titan Enterprises on +44 1935 812790 or [email protected].
