Lower Bavarian Cooperation: In the Matter of Gas Warning Technology, Paul Nutzfahrzeuge Relies on MSR-Electronic

H₂ gas sensors from MSR-Electronic monitor new hydrogen-powered technologies from Paul Nutzfahrzeuge GmbH.

Paul Nutzfahrzeuge GmbH is located at the Lower Bavarian city of Vilshofen on the Danube. The company is one of the European market leaders in the field of special vehicle conversion and construction. Within the past years, this business area within the Paul Group has developed into a successful global player that serves companies all over the world. Every year the chassis experts carry out chassis conversions, axle modifications and frame extensions as well as special configurations on up to 1,000 commercial vehicles.

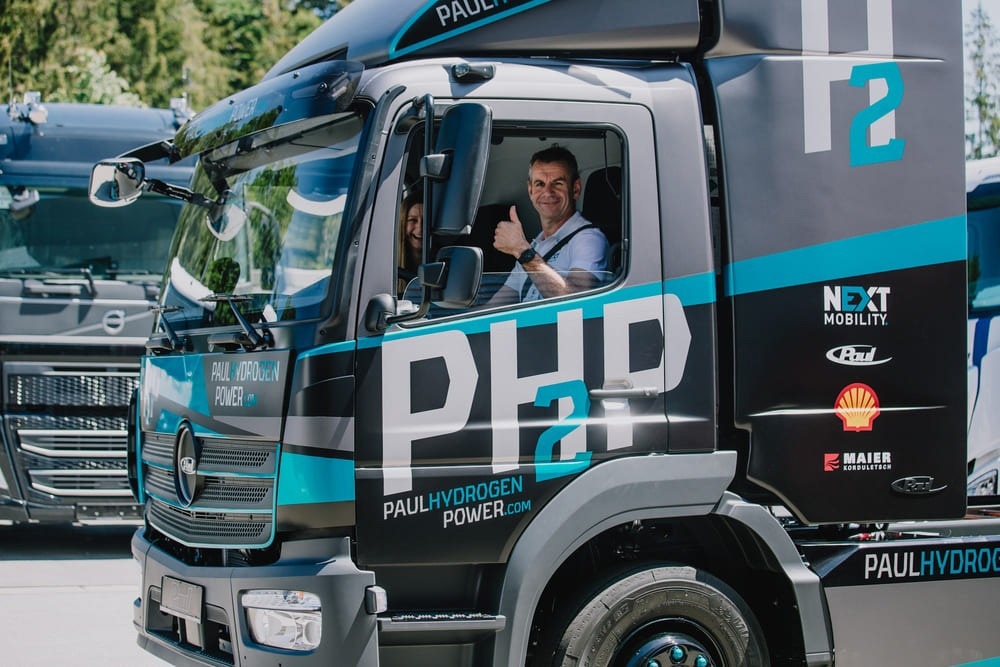

Paul Nutzfahrzeuge is also keeping up with the latest technology revolution of the hydrogen-powered vehicles.

Thus, at the Vilshofen and Passau sites, appropriate halls were built in order to be able to continue working with the new hydrogen-powered technology. Since pure hydrogen (H₂) is loaded and unloaded in these halls, reliable safety technology with gas warning and fire protection concepts is required.

MSR-Electronic GmbH from Pocking, approx. 30 km from Vilshofen, supports Paul Nutzfahrzeuge GmbH here with the planning, provision and commissioning of the fixed gas warning system with ATEX approval. Thanks to many years of experience in H₂ detection, a professional monitoring solution was found for Paul Nutzfahrzeuge.

Solution for H₂ Detection from MSR-Electronic

Thus, 5 PX2 hydrogen sensors and one DGC-06 were installed at each of the 2 sites. After commissioning, they ensure safety against dangerous hydrogen concentrations in the sensitive areas when serviced regularly.

The PX2 gas detector is used in industrial areas like oil/gas industry, biogas plants, petrochemical industry, power plants etc. in Ex-Zone 1 (PX2-1) and/or 2 (PX2-2). It is also suitable for commercial areas like e.g. gas transfer stations etc., and for use on ships, shipyards and offshore platforms etc.

With the 4–20 mA / RS-485 Modbus output signal the PX2 is suitable for connection to the Gas-Controller series by MSR-Electronic, as well as to any other controllers or automation devices.

FEATURES

• ATEX and IECEx certificates MSR-Electronic for electrical Ex protection
• SIL2 safety functions 4–20 mA, RS-485 and relays
• PX2-1 for zone 1 (and also suitable for zone 2):
  • Type “Ex db” protection flame-proof enclosure
• PX2-2 for zone 2:
  • Type “Ex nR” protection
• Enclosure: Additional FM and CSA certificates for Class I, Div. 1
• Continuous self-monitoring
• Microprocessor with 12-bit converter resolution
• Reverse polarity protection, overload protection
• Easy calibration, calibration service by exchanging the sensor head
• Proportional 4–20 mA output
• Serial interface to the control centre
• Alarm and fault signal relay

Options

• LCD display with status LEDs
• Connection of SSAX1 sensor head as an alternative to SX1
• IP66 protection with SplashGuard accessories

The Control Centre: The Gas-Controller DGC-06

The Controller is used for monitoring and warning of toxic and combustible gases and vapours as well as of Freon refrigerants within a wide range of the gas measurement technique. Numerous adjustable parameters and set-points permit individual adaptation to many applications.

The DGC-06 Gas-Controller fulfils the functions of monitoring CO in garages, tunnels and cart tracks etc. according to the current EN 50545-1.
