Modular Liquid Analyzer Transmitter and Sensors Stand Up To Harsh Hazardous Area Environments

Process and plant engineers responsible for hazardous area operations will find the modular X80 Universal Transmitter and S88 Intelligent Sensors from Electronic Component Devices, Inc. (ECD) deliver a versatile, reliable precision liquid measurement analyzer solution for harsh industrial and other demanding environments.

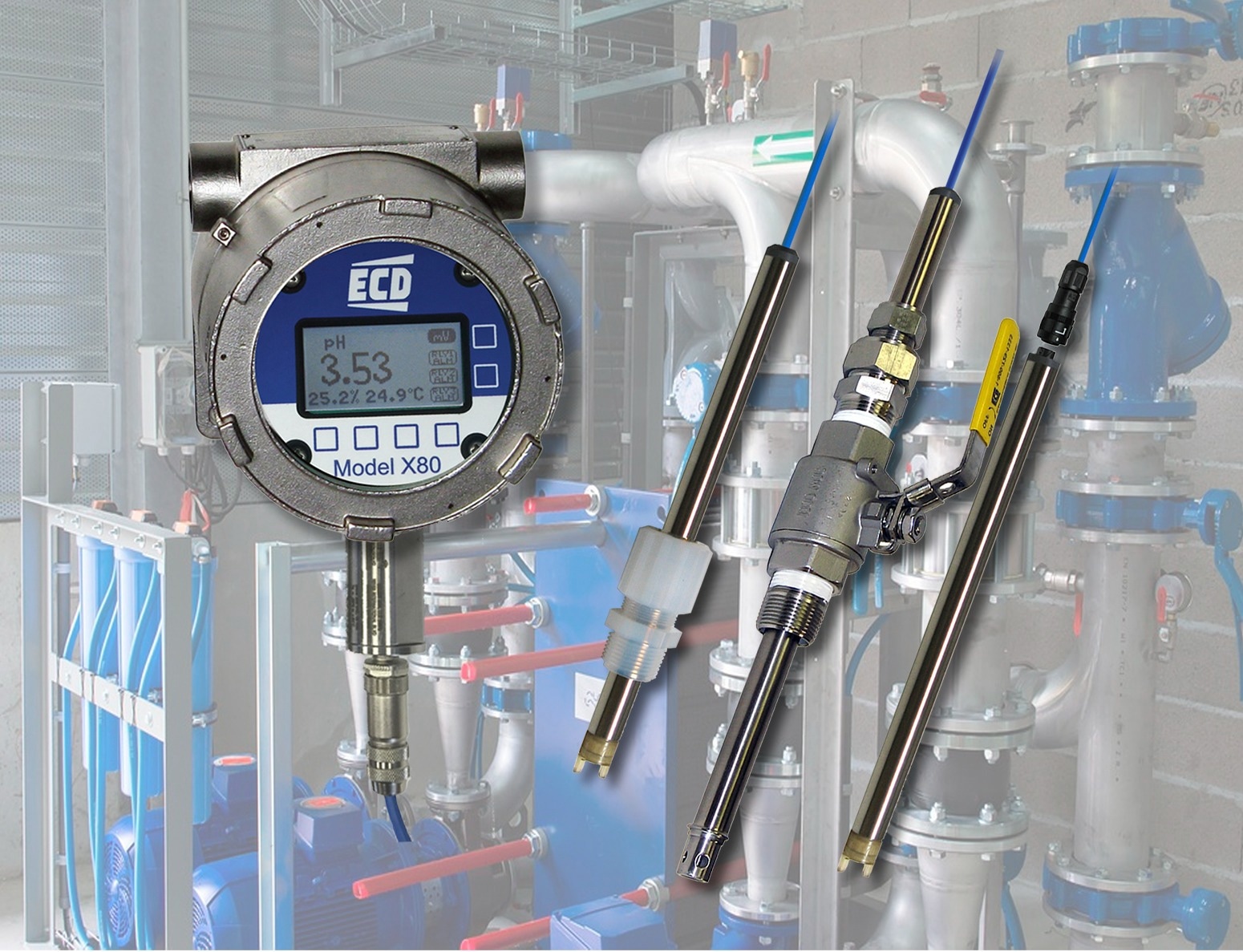

X80-S88 Analyzer. Image Credit: ECD

The highly intelligent X80-S88 Analyzer System is an ATEX, IECEx, FM and CSA certified product family, which features a sealed 316 stainless transmitter and sensors offering an impressive pedigree of hazardous area approvals. With a selection of sensors, materials and electrodes all designed for specific applications, the S88 family of sensors provide long sensor life and lower maintenance cost in many installations that other sensors cannot survive.

For example, the petrochemical industries (and many others) require liquid analysis of corrosive fluids, cooling water, rinse water and other liquids to protect equipment, ensure quality production and for environmental compliance.  The X80-S88 Analyzer is ideal for monitoring these fluids including: pH as an indicator of sour gas and in overhead crude;  pH, ORP, conductivity and chlorine in cooling tower operation; and pH, ORP, turbidity, DO and various pIONs in wastewater effluent.

ECD’s Model X80 Universal Transmitter is available as either a single- or a dual-channel instrument for continuous measurement with standard MODBUS or optional HART digital bus communications and three optional alarm relays.  With its advanced electronics, the modular X80 Transmitter communicates with any Model S88 Intelligent Sensor, automatically configuring the transmitter’s menus and display screens to the desired measurement parameter.

Designed with a rugged 316 stainless steel housing and large easy-to-read sealed display, the X80 Transmitter and ECD’s S88 Sensors eliminate the need to inventory multiple instruments.  The advanced S88 Sensors facilitate two-way communication with the X80 Transmitter and automatically convert it to the chosen parameter.  Where feasible, the X80 also can be used with standard S80 Sensors at reduced cost to measure the same parameters in non-hazardous areas.

Highly intelligent, the S88 Sensor’s measurement parameter, its identity and serial number are all stored in the S88 Sensor’s memory along with calibration registers for parameter measurements.  These sensors are pre-calibrated at the factory, and so they’re ready to use right out of the box and can be immediately connected to the X80 Transmitters.  The rugged S88 Sensors are waterproof and submersible with all internal components epoxy encapsulated.

The S88 Sensors are the smart sensor choice for a wide variety of applications, including oil/gas production, petrochemical refining, electric power generation, water and wastewater treatment and more. The S88 Sensors feature two universal sensor designs: (1) insertion/submersion or (2) valve retractable with flared end to prevent blow out. The standard S88 Sensors have a rugged 0.75-inch O.D. 316 stainless steel body with a 10-foot (3 meter) cable or an optional waterproof detachable cable assembly.

The X80 Transmitter features a large (2.75-x-1.5 inch) easily viewable 128-x-64 pixel LCD display with three easily switchable main display screens for data, millivolt and graphics. The display comes with a gray background and black lettering for loop powered instruments or with a blue background and white lettering with LED backlighting on 24 Vdc powered instruments.
