Measurement Specialties, a leading global manufacturer in sensor-based measuring of pressure/force, position, vibration, temperature, humidity and fluid properties, has released the TSYS02 family of compact digital temperature sensors that easily integrates into a variety of industrial control, HVAC/R and heating/cooling systems.

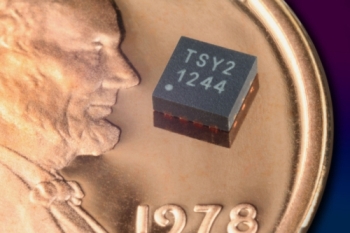

Different Data Outputs Offer Design Options on New Digital Temperature Sensor from Measurement Specialties. (PRNewsFoto/Measurement Specialties, Inc.)
The series' outstanding performance-cost ratio makes these sensors ideal for automotive and medical applications, and the SMT-compatible package enables the sensors to be used in high volume applications for on-circuit temperature control.
Designed with ease-of-use and flexibility in mind, these fully-calibrated sensors come in three different data output options:
- TSYS02D: I2C (Inter-Integrated Circuit) for integration into digital interface bus systems;
- TSYS02P: PWM (Pulse Width Modulation) for integration into simple control units;
- TSYS02S: SDM (Sigma Delta Modulation) for integration into analog circuitries.
The 16-bit temperature sensing resolution combined with the low power and highly accurate characteristics make these sensors cost-effective replacements for thermistors, NTCs (negative temperature coefficients) and RTDs (resistance temperature detectors).
Available in an ultra-compact TDFN8 surface mount package, the TSYS02 measures only 2.5 mm x 2.5 mm, while drawing a maximum of 12.5 microampere. Operating temperature range is -40°C to +125°C.
Every TSYS02 is factory-calibrated to provide a high accuracy of +/-0.2°C. Custom calibration is also available to meet specific application needs.
Pricing for a TSYS02 is $1.85 (US) per unit in quantities of 10,000. Delivery time is dependent upon quantity ordered.
For more information, email [email protected]
Follow us on LinkedIn: Measurement Specialties, Inc.
UPCOMING TRADESHOW: Sensors+Test 2013; May 14-16; Nuremberg, Germany; Hall 12 Booth 263
READER SERVICE INQUIRIES: Please direct all product inquiries to Bob Arkell , NA Marketing Manager; [email protected]; 760-466-7614.
Source: http://www.meas-spec.com/
