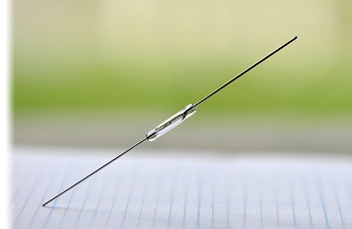

Standex-Meder Electronics Announce Release of New GR400 Series Miniature Reed Switch

Standex-Meder Electronics, a manufacturer of precise, reliable, and long-lasting miniature reed switches, sensors and reed relays, announces the GR400 Series miniature reed switch.

This 10mm reed switch, created with a patented, highly automated production process, provides a low-cost solution for a wide range of applications, including counting, end limit detection, low power devices, movement or position detection, and presence, proximity, rotation, or speed sensing. These applications span many industries: aerospace, automotive, HVAC, test and measurement, security, and more.

The GR400 offers excellent electrical characteristics, with zero to 10 W of rated power, a switching voltage of zero to 180 volts (VDC/VAC), a maximum switching current of 0.5 amps, and a maximum carry current of 0.8 amps. It is available in an operating sensitivity of 7-30 Ampere-turns, and operating temperature range of -40°C – 125°C. The breakdown voltage across the dynamically tested contacts is 230 VDC with a maximum contact resistance of 150 milliohms.

Like many Standex-Meder reed switches, the GR400 Series is tested to ensure a long life, capable of tens of millions of trouble-free switching cycles. With no power consumption and zero emissions, it is also RoHS compliant, UL recognized, and REACH compliant. The GR400 is available in a contact form 1A (SPST) (normally open contact), center gap.

About Standex-Meder Electronics

Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.

Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.

We offer engineered product solutions for a broad spectrum of product applications in the automotive, medical, test and measurement, military and aerospace, as well as appliance and general industrial markets.

Standex-Meder Electronics has a commitment to absolute customer satisfaction and customer-driven innovation, with a global organization that offers sales support, engineering capabilities, and technical resources worldwide.

Headquartered in Cincinnati, Ohio, USA, Standex-Meder Electronics has eight manufacturing facilities in six countries, located in the United States, Germany, China, Mexico, the United Kingdom, and Canada.
