tecsis LP offers the Model XPA-1U; a robust, high precision pressure transducer which delivers 0.05% FSO (BFSL) accuracy with outstanding repeatability and thermal specs.
Designed specifically for demanding industrial test and measurement use, these versatile sensors feature rugged welded construction, proven strain gage technology, and a complete selection of pressure ports, electrical terminations, and temperature compensation options to integrate into new or existing applications.

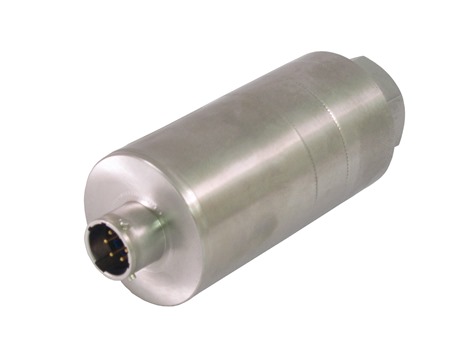

Model XPA-1U equipment.
The XPA-1U requires 10Vdc excitation and provides standard 2mV/V output, with internal or in-line amplification optionally available. The XPA-1U covers ranges from 0-15 to 0-10,000 psi with gage or absolute reference. This unit is ideal for severe environments with a burst pressure of 300% of the rated pressure, 17-4PH stainless steel wetted parts, and an operating temperature from -65° to +250°F, compensated from +60° to +160°F.
Available now from tecsis LP and priced from $885.
Contact tecsis at 614-430-0683 or click for pricing. tecsis LP, 771-F Dearborn Park Lane, Worthington, Ohio 43085 USA. Email: [email protected] Web: www.tecsis.us. Made in USA. tecsis LP is an ISO 9001:2008 Certified company.
