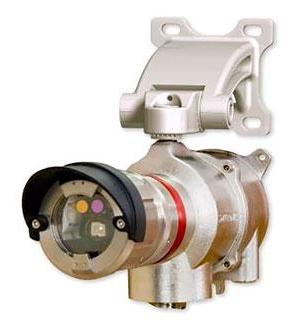

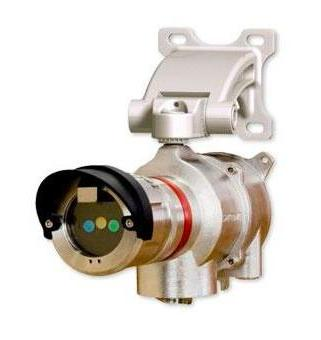

Simtronics DF-TV7-V UV/IR Flame Detector

The MultiFlame DF-TV7–V is designed to respond to unwanted hydrocarbon fires, whilst maintaining a high degree of false alarm immunity.

The device offers a wide range of output options, as standard and is suitable for use in SIL 2 applications.

The unit may be interfaced directly with a wide range of fire panels, controllers and PLC’s etc. The unit is fully configurable using a wireless hand-held terminal (TLU) or optionally via HART (R) giving true flexibility to the installer.

Time delays, sensitivity and output configuration are all set up via the TLU; a hazardous area approved hand-held unit. Wireless testing of the optical and output circuits are also possible using the TLU.

Download the Brochure for More Information

Key Features

The key features of the DF-TV7V are:

  • Multi-spectrum infrared flame using three wavelengths
  • Selectable sensitivity and time delays
  • Long range (up to 80m, 260ft deep) and wide field of view
  • Fewer detectors needed due to enhanced fire detection coverage
  • Relays and 4-20mA output
  • Standard industry interfaces
  • Continuous auto-check of optical lens
  • Ensures safe and proper device operation
  • Selectable sensitivity and time delays
  • For configuration to each application
  • Wireless detector configuration and testing using TLU
  • Minimises the need for direct detector access
  • HART(R) output option available
  • Full configuration and diagnostics over nonproprietary interface.

Applications

The applications of the DF-TV7V are:

  • Refineries
  • Drilling and Production Platforms
  • Fuel Loading Facilities
  • Compressor Stations
  • LNG/LPG Processing and Storage
  • Gas Turbines
  • Chemical Plants
  • Aircraft Hangars.
