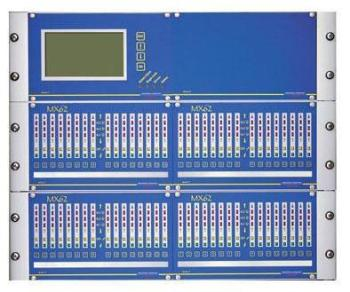

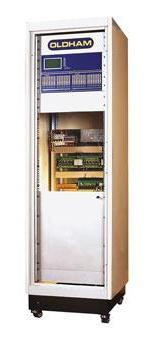

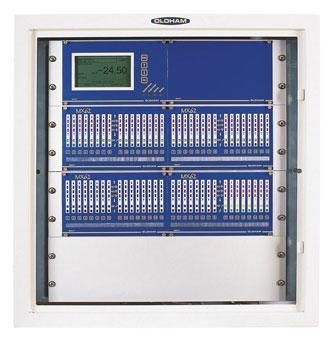

Gas Detection Controller - MX 62

Teledyne’s MX 62 is an appealing solution for gas and flame detection requirements. The MX 62 is a modular and versatile controller that is easy to set up and helps to minimize operational costs.

The MX 62 system meets the ATEX 100 A regulations and provides a high security level as mandated by the SIL3 and SK2 rated systems.

Cost-Effective and Secure Installation

The structure of the MX 62 platform has been engineered to offer redundancy. Precise data is relayed promptly from the detectors to the relays.

Structured Programming

The MX 62 is configured using the ConfigPro.exe software, via a secure and password-protected interface.

Saves Space and Optimizes Cost

  • Novel design matches the new safety demands
  • Flexibility allows improved integration with the user’s system
  • Modularity allows a customized operation and custom wiring
  • Programmable outputs minimize relay requirements
  • High dependability guarantees minimum maintenance


Various Modules

LED Module (A)

16 channels (8 channels as standard).

  • Power “on”
  • Reset/acknowledge
  • 4 alarm thresholds
  • Fault

LCD Module (B)

Up to 30 displays can be linked to the MX 62, which facilitates the measurement display at any place and at any time.

  • User-friendly display graphics
  • Graphic, alphanumeric, high-definition LCD
  • Can be remote via RS 485
  • Data storage: optional 5 days

Printer Module (C)

  • Parallel connection
  • Printing alarms, fault, relay operating status, minimum/maximum average more than 8 hours
  • Type ASCII, alphanumeric 40 or 80 characters

CPU Module (D)

The CPU module is the core of the system, with two processors and backup power supply.

Plug in the LCD and LED modules, or remote connection through RS485 (4 wires + shield).

  • Allows connection to multiple modules
  • Offers centralized management
  • Allows connection to an external or internal printer

Analog Input Module (E)

Analog signals from the detectors can be input to the control system. Dual converters guarantee dependable and redundant operation.

  • Allows direct link with the MX 62 system or remote through the adapter module
  • Offers up to 8 measurement points, 2 or 3 wires

Adapter Module (F)

  • Facilitates three operating modes:
  1. Connection of two analog input modules
  2. Integration of up to eight addressable detectors with a remote analog module
  3. Loop configuration of up to 16 addressable detectors
  • The module can be remote through two RS485 networks (2 x 4 wires + screened platform)

Relay Module (G)

  • Equipped with two processors connected to the CPU
    • Separately programmable positive safety
    • Principal module: 8 relays
    • Extension module: 8 relays
    • Breaking capacity: 460 VA, 60 W
    • NO/NC contacts
  • The module can be remote through 2 RS485 (2 x 4 wires + screened platform)

Analog Output Module (H)

  • Equipped with two processors connected to the CPU
    • Fitted with eight analog 0–10 V or 4–20 mA outputs
  • Each output is designed to transmit:
    • The linearized value
    • The real-time value for each input
    • Means or max. for a detector group
  • Mimic module: open collector (56) ideal to drive LED mimic panel according to MX 62 channel

Communication Module (I)

  • Allows to connect with CPU via the RS 232
  • Possible to connect to a supervisor for data exportation (DCS, PLC, or SCADA)
  • Offers Modbus or personalized protocol via RS 422

A communication splitter module is available (Optional).


Key Features

  • Up to 64 secured channels available for direct or network wiring
  • SIL2 and SIL3 according to IEC61508:2011 and EN50402:2006
  • Users can choose direct network and loop connection
  • Offers redundancy from measurement to alarm relays
  • Functions including AND, MIN, MAX, OR, Voting
