Posted in | Gas Sensors

MX 256 Control Unit — For Gas Detection and Measurement

Teledyne Gas and Flame Detection provide high-performance gas detection systems. The collection also includes a variety of units and alarms that are compatible with gas detectors.

Why Use a Gas Detection Controller?

A fixed detection system’s key component is the gas detection controller. It is linked to many detectors and provides continuous and permanent monitoring of places exhibiting gas leak threats.

It is important to note that the ATEX EN 50271 certifications and metrological performance as per EN60079-29-1 of the detector installation assure secure operation.

The device begins by analyzing the gas measurements provided by the detectors. It produces actions to warn users of the hazards associated with an excessive concentration of gas in the case of an abnormal threshold. These actions are predefined by the user and can include sound and/or light signaling, servo-controls, or alarm reporting through remote transmission.

MX 256 — The New Gas Detection Controller

When using various gases, hazards can arise happening every day and it can be difficult to guarantee the safety of the employees in a working environment.

Teledyne Gas and Flame Detection.

Image Credit: Teledyne Gas and Flame Detection

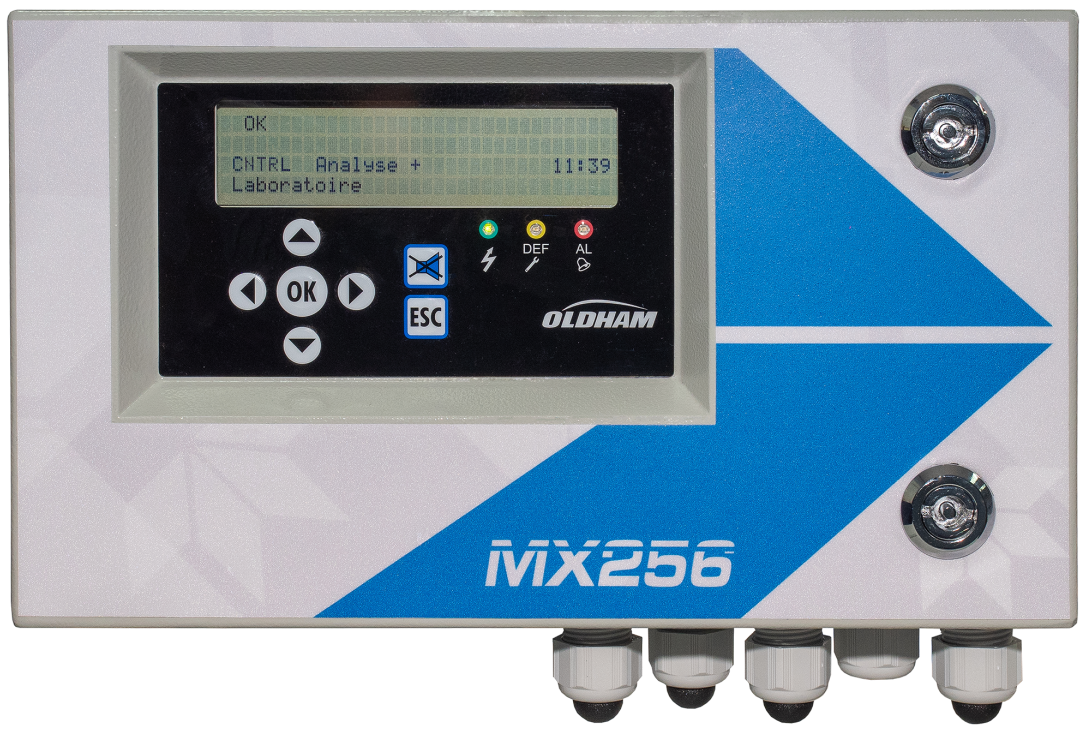

Teledyne is delighted to announce the launch of MX 256 — its latest addition. With over 200 gas detection sites, this low-cost device delivers versatile, accurate and dependable site management, while its semi-automatic magnetic calibration simplifies maintenance to guarantee that the user’s system stays healthy, even in the harshest of settings.

Furthermore, compared to employing several stations for more extensive places such as labs, hotels, schools, colleges, and public and industrial buildings, these fully addressable sensors significantly reduce installation costs and, more crucially, the entire cost of ownership.

The MX 256 joins the MX family of units, which has the MX 16, MX 32, MX 40, MX 43, MX 52, and MX 62, to provide clients with a diverse choice of solutions to fulfill gas detection requirements.

Strong Points

  • 256 Addressable Relays
  • 256 Analogue Outputs
  • 224 Logic Inputs
  • 256 Digital Sensors
  • The OLCT 10N line of digital detectors can detect the following gases: O2, NO, NO2, NH3, CO, CO2
  • Integrated Relays
  • Digital control unit with 8-line
  • Large Capacity
  • Small in size and simple to install

The MX 256 is small and easy to install in a wall-mounted box; setup is done using the COM 256 programming software.

The MX 256’s new industrial controller or remote HMI option allows:

  • The connection of 4-20 mA detectors
  • Data recording on a USB key or SD card
  • To provide a diagnosis of the installation or to share the recorded information thanks to its embedded web page

A variety of uses are possible:

  • Research Laboratories

Teledyne Gas and Flame Detection.

Image Credit: Teledyne Gas and Flame Detection

  • Production and storage areas, large industrial warehouses.

Teledyne Gas and Flame Detection.

Image Credit: Teledyne Gas and Flame Detection

  • Public buildings/hotels/commercial facilities

Teledyne Gas and Flame Detection.

Image Credit: Teledyne Gas and Flame Detection

  • Universities/schools

Teledyne Gas and Flame Detection

Image Credit: Teledyne Gas and Flame Detection

MX 256 Control unit - New in Gas Detection

Video Credit: Teledyne Gas and Flame Detection

MX 256 Control Unit — For Gas Detection and Measurement

7200+ & 7400+ fixed Gas Controllers
7800 Series- Multichannel gas & flame monitoring system
MX 16 - One channel Gas controller with display
MX 256 Control Unit
Gas Detection Car Park System - CPS
One channel gas controller Surveyor 4B
MX 32 Analog and digital gas controller
7400 QuadScan - Four Point Analog Gas Controller
MX 43 SIL1 Certified Gas Detection Controller
X40 - Multichannel Gas Alarm & Control System
MX 52 Multichannel Gas Detection Controller

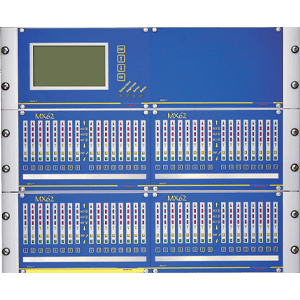

MX 62 Multichannel Gas Detection Controller
MultiSafe-MX - Fire, Gas, and Intruder Alarm System

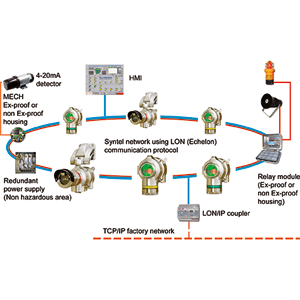

Syntel - Gas & Flame Detection System
